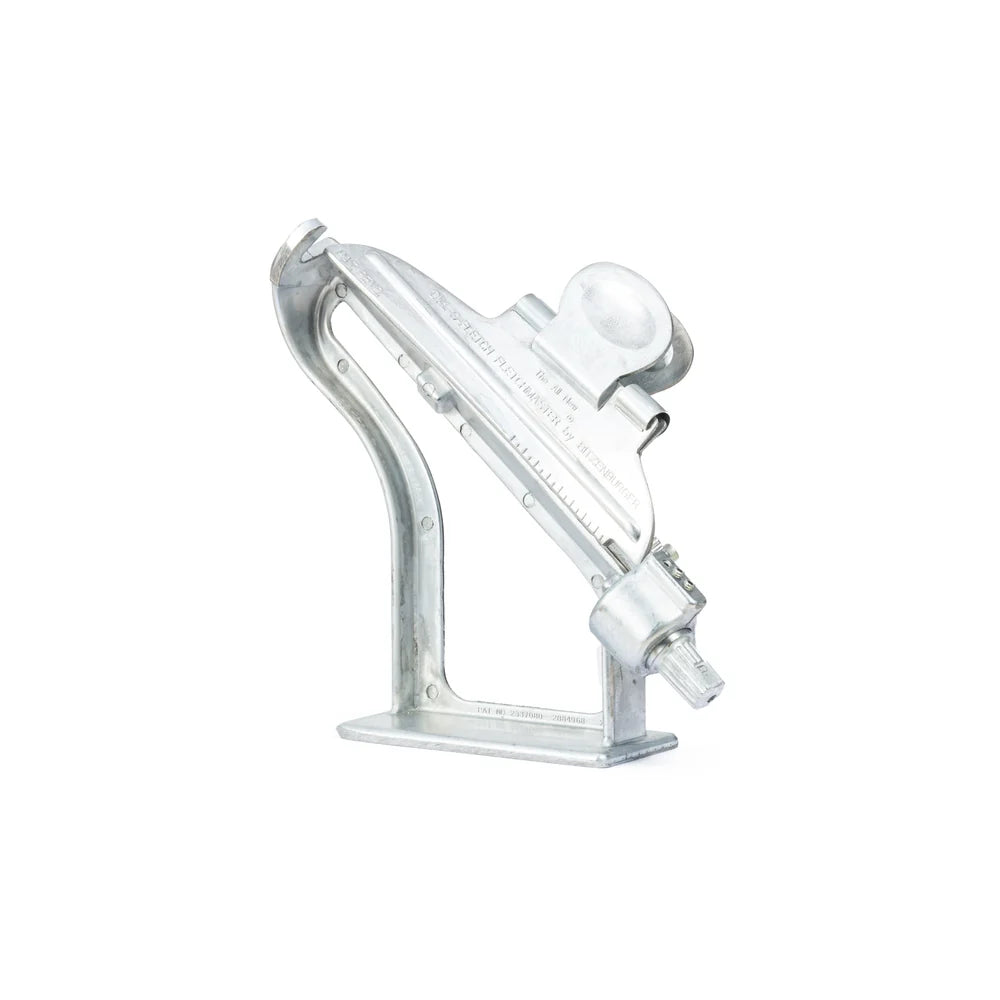

Bitzenburger's Fletching Jig has long been the choice of do-it-yourself archers.
With it, you can put three or four fletchings on an arrow shaft. The large dial keeps the spacing between fletchings perfect every time. Allen screws on the top and bottom of the clamp magnet allow adjustments to the angle of fletchings. Best of all, the jig is all metal, which means it's a snap to clean off the glue residue.
Features:
Zinc Die Cast Alloy: The Bitzenburger™ fletching jig is made of long-lasting zinc die-cast alloy. Its superior quality makes it the only jig you will ever need to buy.
Adjustable Dials: Large dials at the top and bottom of the magnet holder make it easy to adjust the angle of your fletching within seconds. You have the option of a straight, offset or true right or left helical.
Clamp: The clamp is held at a 45 degrees angle so you will have a clear view of the fletching at all times.
ClampSelf-Centering Shaft: This is a very important feature as it will accept and center any size shaft available today. This allows you to create an array of arrows for any type of shooting.
Permanent Magnet: The strong permanent horseshoe magnet allows for a very precise and uniform placement of all feathers and vanes. All of the many patented functional features work in unison with this magnet. The magnet is the most expensive and important part of this tool. Great care should be taken to protect it. A metal keeper or the clamp should be kept across the face of the magnet at all times.

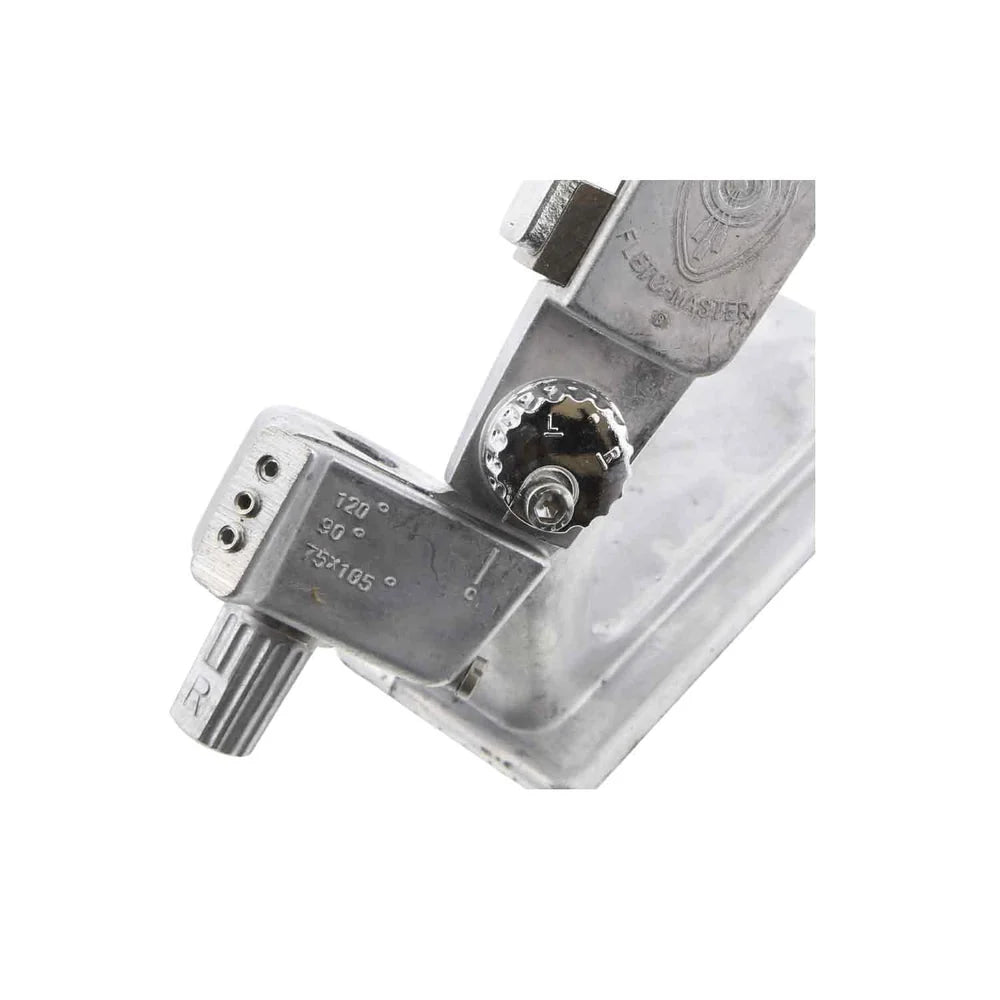

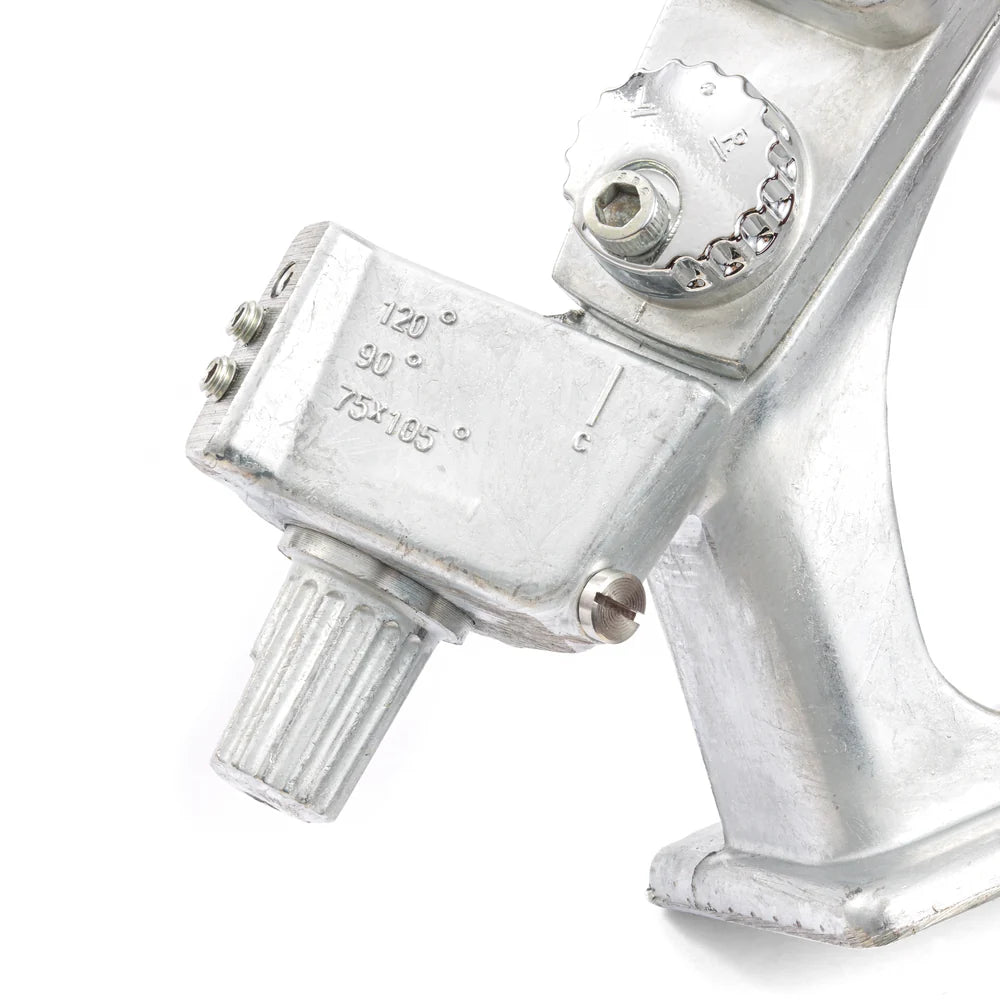

Feather Spacing: With just a slight screw adjustment you can vary the degrees of your feather spacing. Possible spacings include: 3 fletch 120 degrees, 4 fletch 75 degrees x 105 degrees, 4 fletch 90 degrees
Tools and Instructions: Each and every Bitzenburger™ jig comes with a complete set of wrenches and instruction sheet.
