Key Features and Intended Use Target Audience: The Ideal riser is primarily aimed at beginner and intermediate archers moving into metal risers or Olympic-style recurve shooting.
Design: It features a stylish design and is known for being a solid, reliable platform for developing archers.
Accessory Compatibility: It includes multiple mounting points to accommodate a full range of recurve accessories.
Technical Specifications
Feature
Specification
Limb Fitting

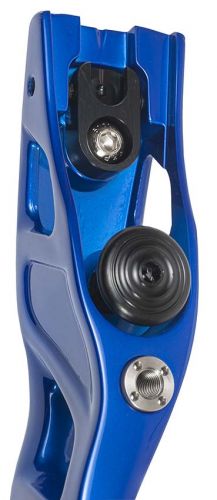

International Limb Fitting (ILF). This is a major feature, allowing for wide compatibility with limbs from various manufacturers.
Material
Die-cast Aluminum (or Die-cast Aluminium). This manufacturing process helps keep the cost lower than forged or CNC-machined risers.
Length
25 inches
Weight
Approximately 1040g (or 2 lbs 6 oz)
Handedness
Available in both Right Hand (RH) and Left Hand (LH) models.
Finish

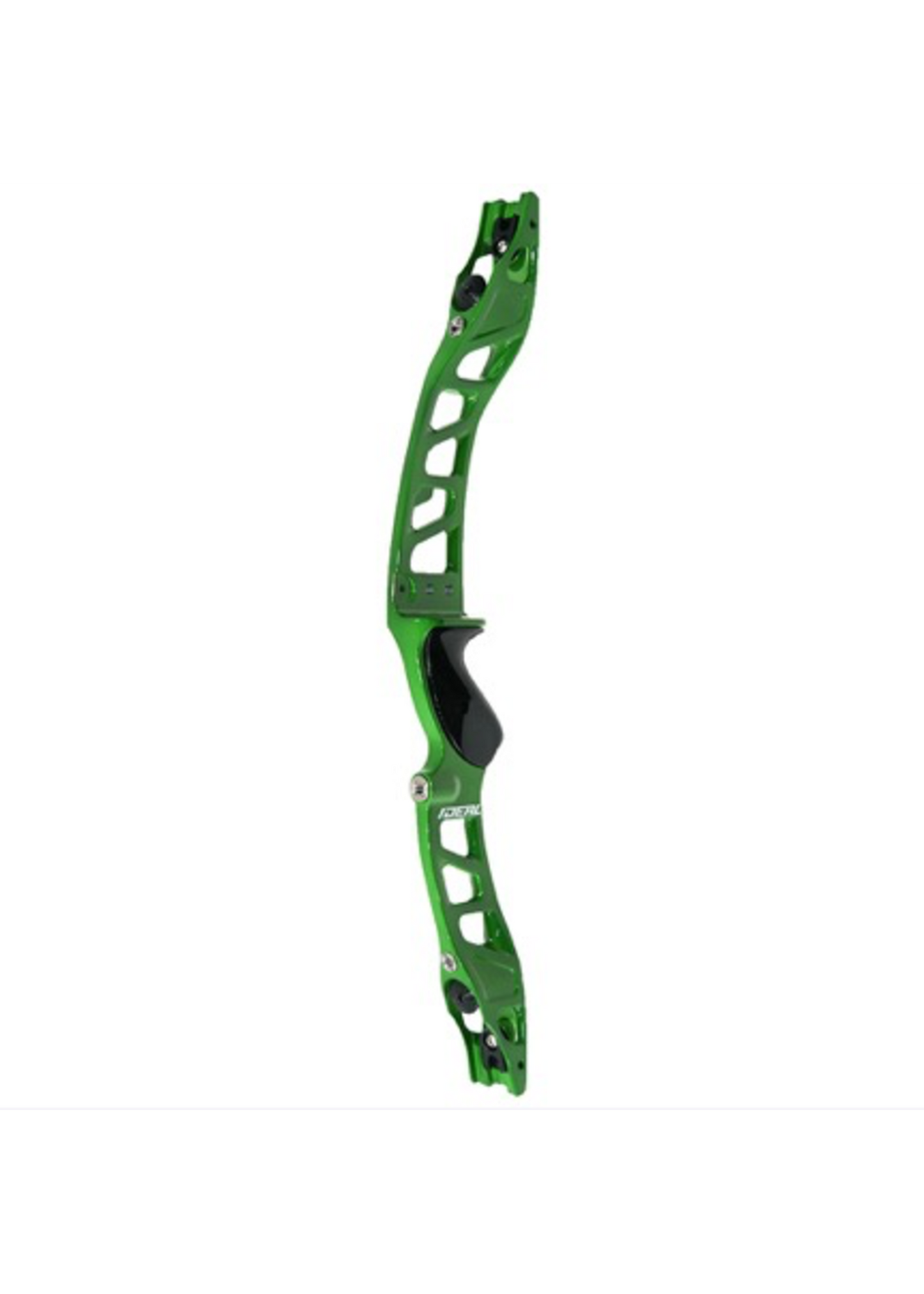

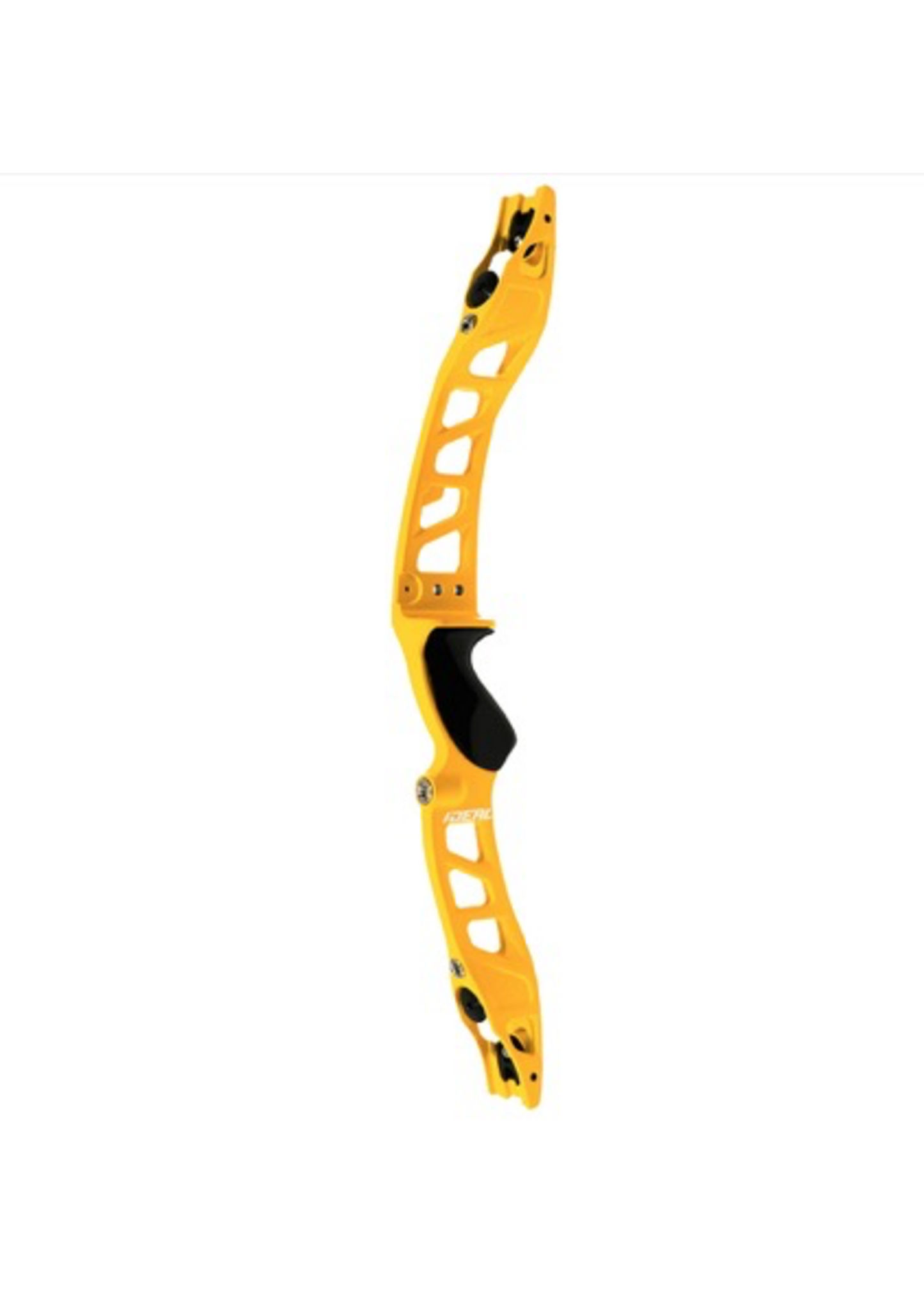

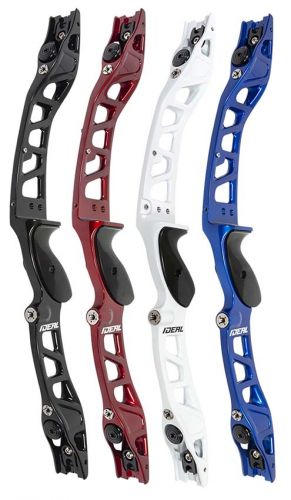

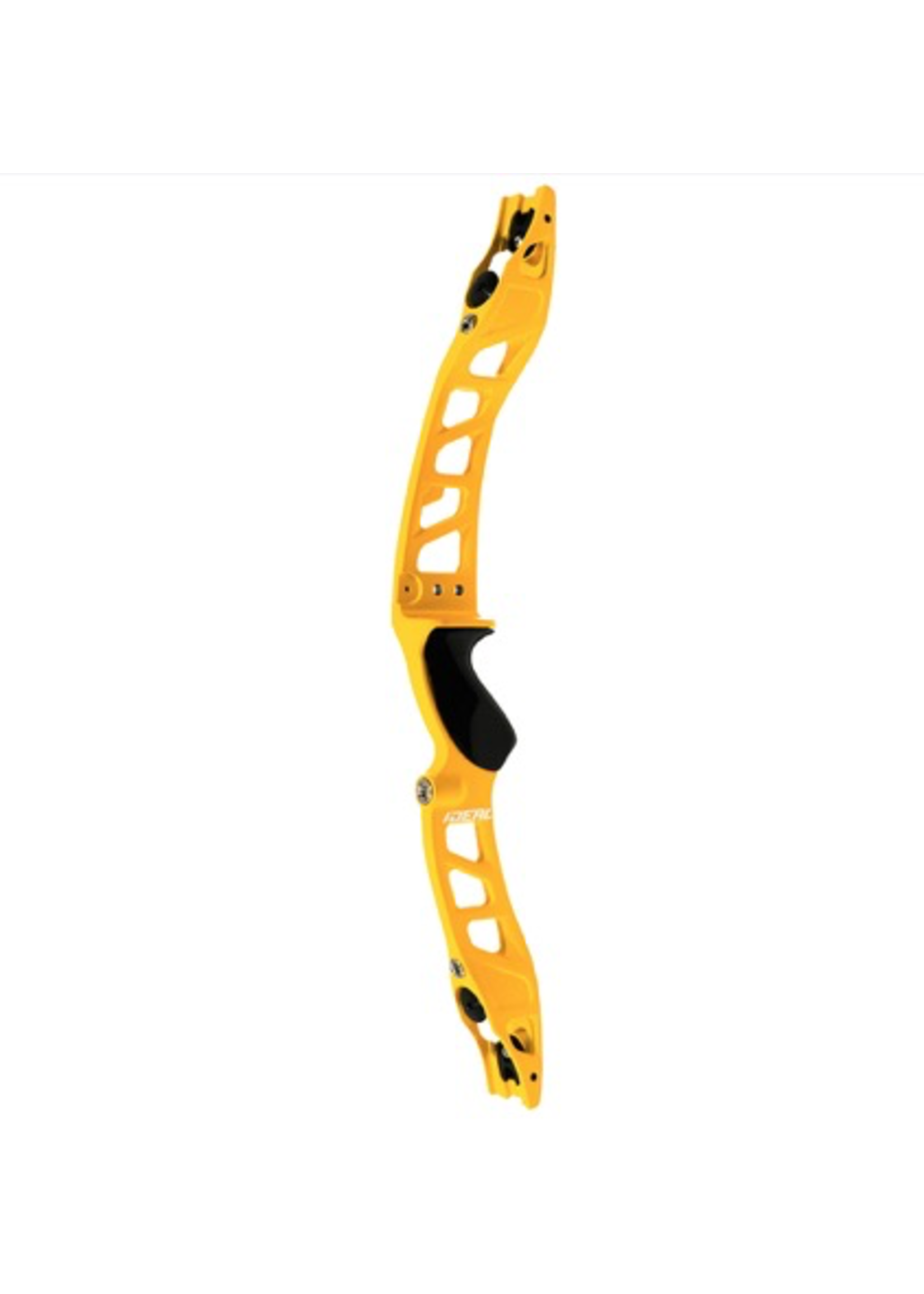

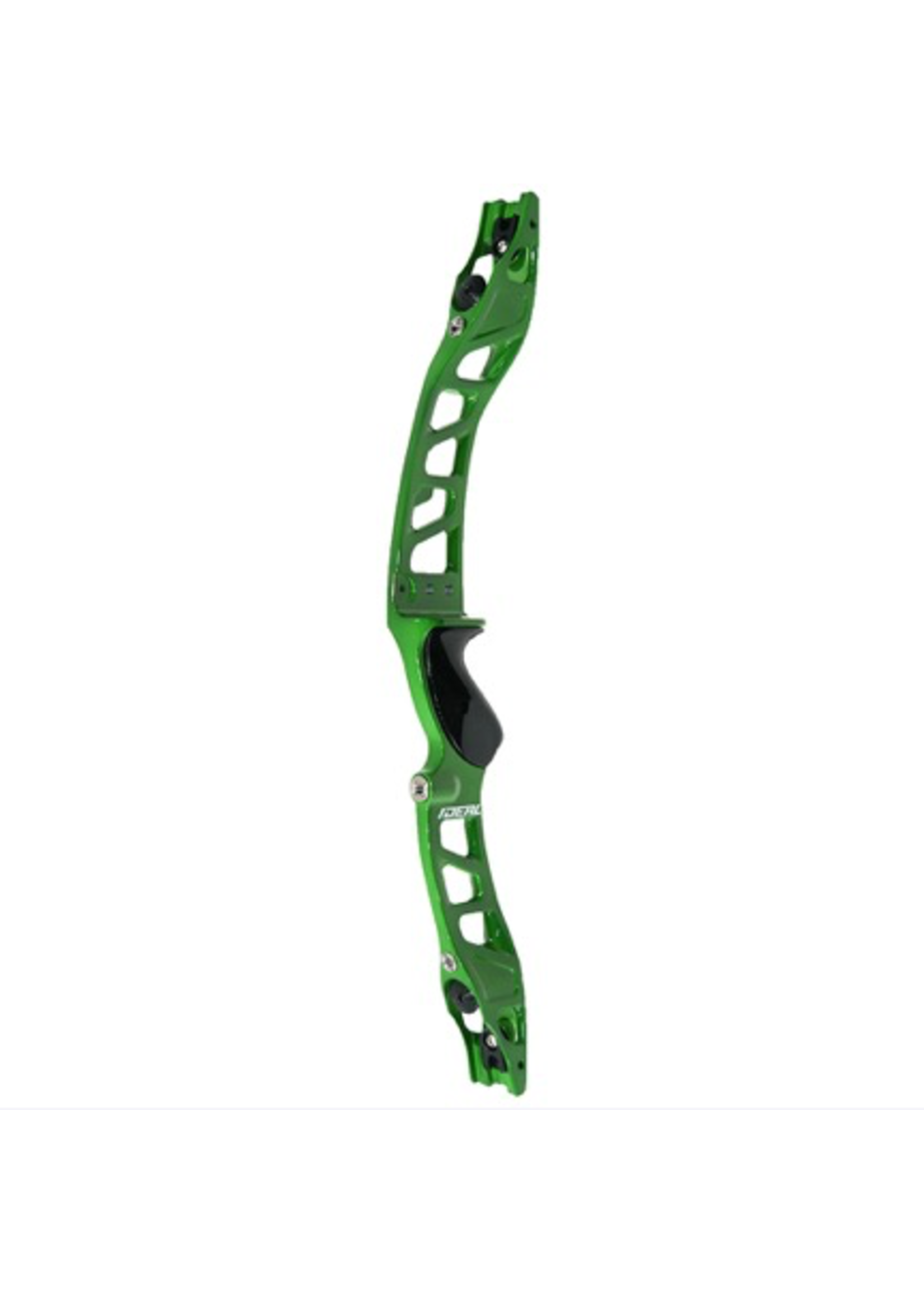

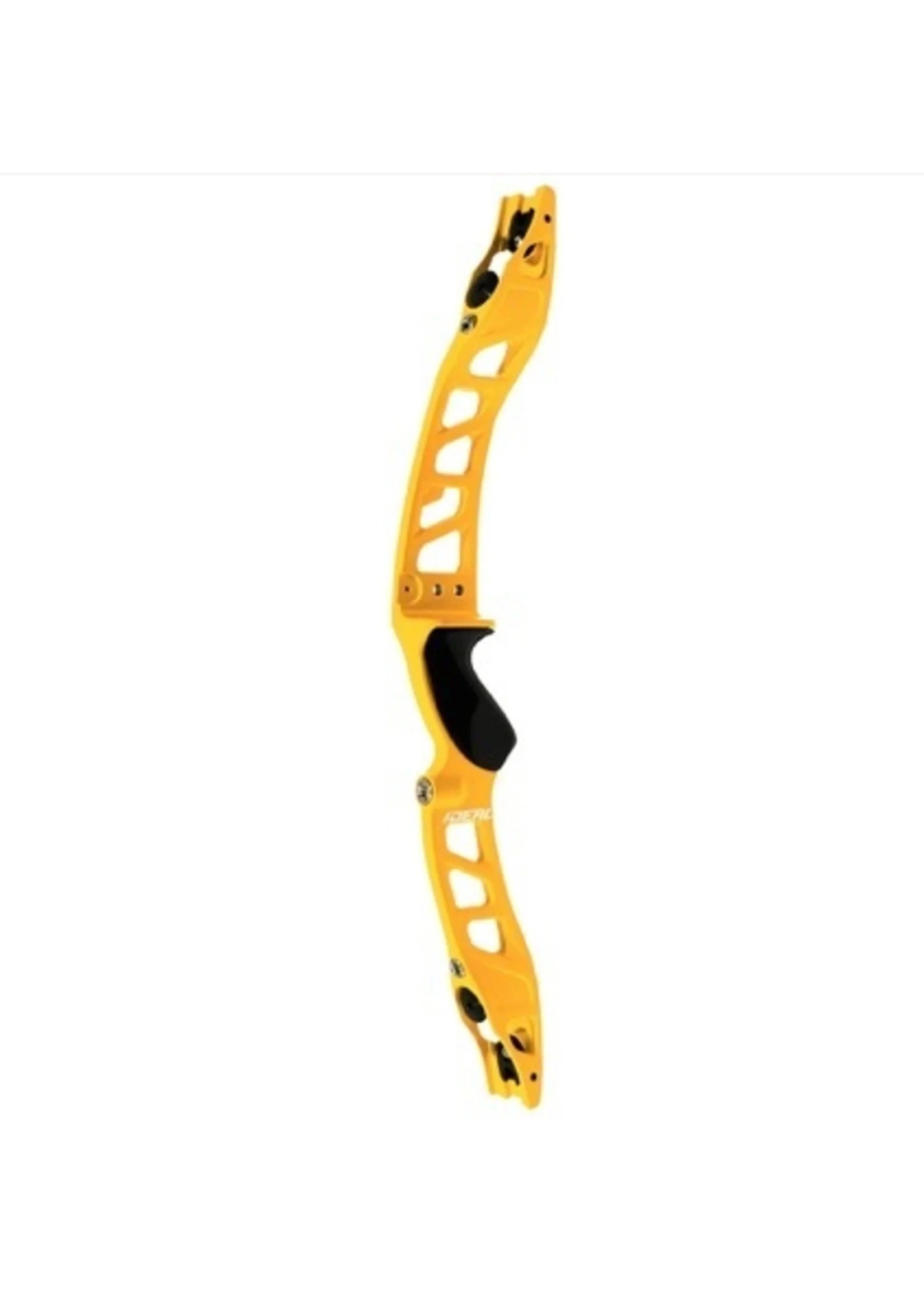

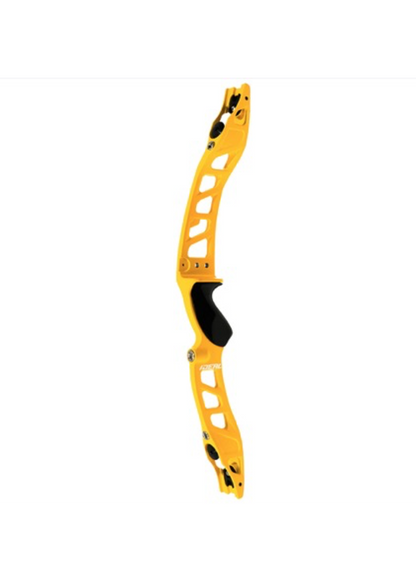

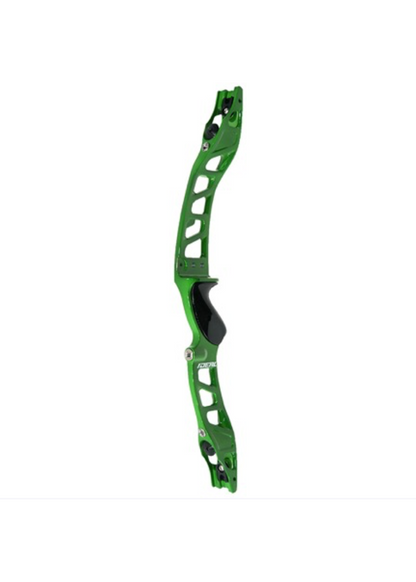

Typically a painted finish, available in a variety of colors (e.g., Red, White, Black, Blue, Gunmetal Gray, Yellow, Green).
Tiller/Weight Adjustment
Features ILF connections that include center alignment and weight/tiller adjustment.
Maximum Recommended Draw Weight
Generally up to 36 lbs (though some discussions suggest a maximum of around 40 lbs, it's best to check the manufacturer's official rating).
Mounting Bushings

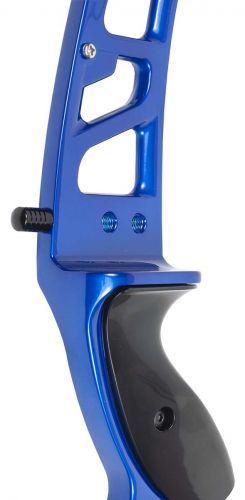

Includes 5/16-inch steel bushings for top, bottom, and central stabilizers, as well as two mounting positions for a cushion plunger.
Threads
6-32 clicker thread and 3/16x24 sight mounting threads.
