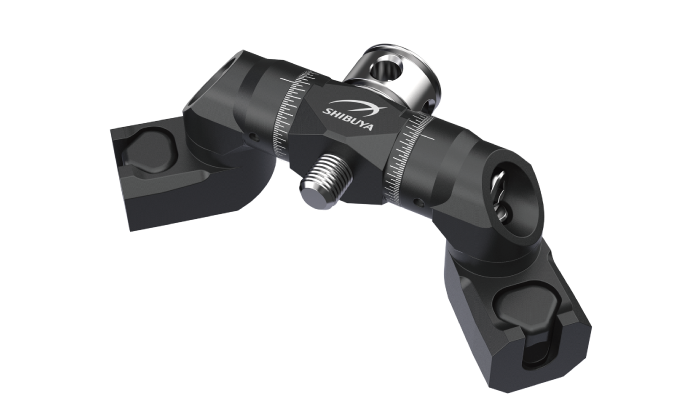

Shibuya Varis Recurve V-bar Mount
Shibuya Varis Recurve V-bar Mount
Couldn't load pickup availability
Anti-Loosening Design with Opposing Thread Directions
Most products use bolts that tighten in the same direction on both sides. However, this model adopts bolts with opposing tightening directions —the right side tightens clockwise, and the left side tightens counterclockwise.
This ensures that each bolt tightens toward the direction of downward force on the side rod, effectively preventing unexpected loosening during use.
Newly Designed Click-Lock QD Connect (Patent Pending)
The redesigned quick-detach connector features a built-in click mechanism for improved retention and drop prevention.
By giving the QD pin a triangular-based geometry, the contact area at lock engagement has been increased, allowing for a more secure lock. This greatly enhances resistance to loosening.
Additionally, the dovetail structure improves alignment precision for the side rod mounting position.
Compatible with PRIMUS Aluminum V-Bar Bolt
Fully compatible with the aluminum V-bar bolt included with PRIMUS stabilizers, enabling a wide variety of weight configurations.
Thread size: 5/16-24
Not compatible with bolts longer than 12 mm.
PRIMUS V-Bar Bolt:
Uses a newly developed ultra-high-strength material even stronger than A7075 high-strength aluminum alloy.
CNC machining ensures a refined, precision-cut design.
The material has approximately one-third the density of stainless-steel V-bar bolts , contributing to a lightweight yet high-strength system.
*** (It would be 2 weeks back ordering if out of stock) ***
