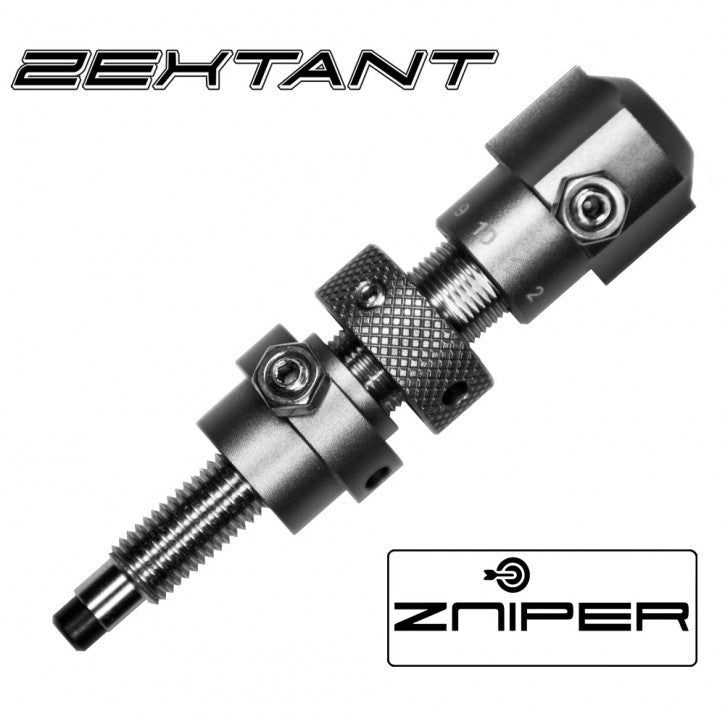

Zniper - Zextant Plunger Button

(2 weeks back order)

The ZNIPER Zextant plunger comes in 4 sizes for a perfect fit on your bow with either stick-on or bolt-on rest.
The Zextant has 3 specifically desined performance springs with different tensions to
ensure optimal adjustment.
In addition to its exceptional quality, the ZNIPER Zextant plunger is the first plunger with adjustable screw-in depth and spring tension via rotating micro-clicks.
Therefore, the ZNIPER Zextant only needs to be screwed into the bow once and then can be set up easily each time with the specific number of rotating micro-clicks.

Sizes

The ZNIPER Zextant is offered in four different sizes. The size of the Zextant is defined by the screw-in depth.




• Small (S):    19-23mm
• Medium (M):    22-26mm
• Large (L):    25-29mm
• XLarge (XL):    28-32mm

Content

• - Zextant plunger (pre-assembled) incl. the new enhanced Button Pin Version 2
• 3 springs of different strength
  (soft – pre-assembled, medium strength, hard)
  • Soft spring => 1,2 -3,9 Nm
  • Medium spring => 3,8 -7,8 Nm
  • Hard spring => 7,5 -11,8 Nm
• 1 replacement pin fitting the plunger in the new enhanced Version 2
• These operating instructions
• 2 spacers: 1x 1mm and 1x 2mm to reduce the screw in depth of the plunger when needed
• The following tools:
  • 1x Allen key 1,5mm
  • 1x Allen key 2,0mm
  • 1x Clamping Tool to tighten Zextant and grid system

Key features of the ZNIPER Zextant

• Both plunger depth and plunger pressure can be set in a reproducible grid pattern without having to repeatedly loosen and tighten the plunger for the plunger depth.
• Lowest tolerances and the best design for an incomparable shooting experience
• The Zextant is delivered with three springs of different strength
  • Soft spring => 1.2 – 3.9 Nm
  • Medium spring => 3.8 -7.8 Nm
  • Hard spring => 7.5 -11.8 Nm
  • The mean pressure adjustment of the spring is 0.04Nm, 0.05Nm or 0.06Nm depending on the spring strength
  • The springs were specially developed and manufactured in Germany for the ZNIPER Zextant
• The basic components of the Zextant are made of stainless steel or 6061 aluminum. All aluminum components are anodized in titanium color.
• Every component of the Zextant is available as a spare part and therefore the Zextant is very sustainable and environmentally friendly.
